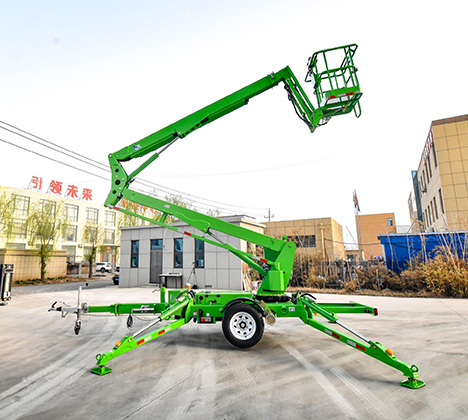

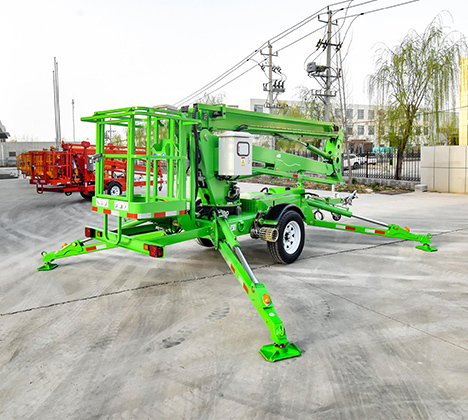

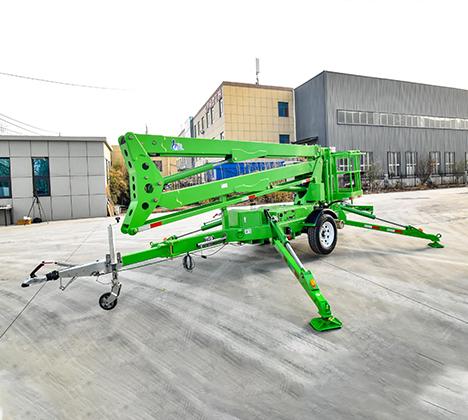

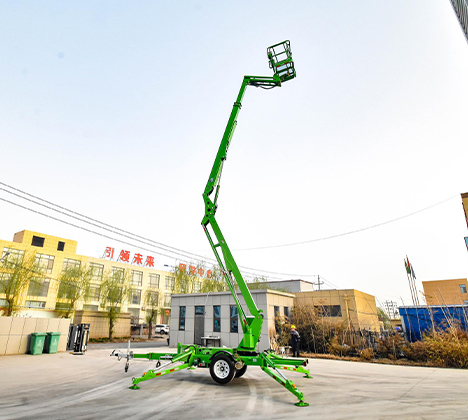

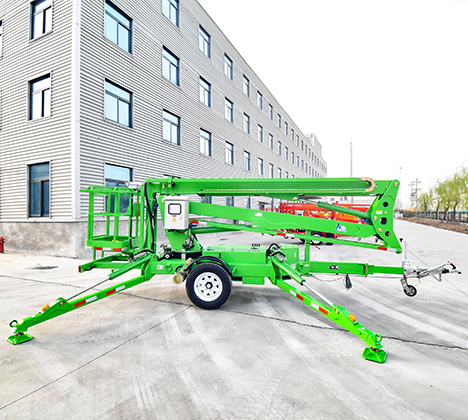

Boom Lift, as an aerial work equipment, is widely used in various scenarios that require aerial work. It enables operators to perform work at high altitudes, such as maintenance, installation, cleaning, etc. This equipment greatly improves the safety and efficiency of aerial work and is an indispensable part of modern industry, construction, municipal administration and other fields.
If you need it, please click below to get a free quote
| Model | TBL-12A | TBL-14A | TBL-14AT | TBL-16A | TBL-18A | TBL-20A | TBL-20AM | TBL-22A | TBL-24A |
| +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | +Telescopic | |||
| Working height | 12M | 14M | 14M | 16M | 18M | 20M | 20M | 22M | 24M |
| Lifting height | 10M | 12M | 12M | 14M | 16M | 18M | 18M | 20M | 22M |
| Load capacity | 300KG | 220KG | 300KG | 300KG | 220KG | 220KG | 220KG | 220KG | 220KG |
| Platform size | 1.2*0.8M | ||||||||
| Working radius | 5.5M | 6.5M | 7.8M | 8.5M | 10.5M | 11M | 10.5M | 11M | 11M |
| Power | AC-electrical/Diesel/Gasoline/DC Battery | ||||||||
| Length After Folding Tractor (D) | 5.2M | 6.2M | 4.7M | 5.55M | 5.7M | 6.5M | 5.5M | 5.8M | 5.8M |
| Wind Resistance Level | ≦5 | ||||||||
| Rotation | 359 degree | 360 degree | |||||||
| Net Weight | 1950KG | 2100KG | 2150KG | 2150KG | 2350KG | 3800KG | 3700KG | 4500KG | 5000KG |
| Overall Width (A) | 1.7M | 1.7M | 1.7M | 1.7M | 1.7M | 1.8M | 1.8M | 1.9M | 1.9M |
| Stowed Height (B) | 2.1M | 2.1M | 2.1M | 2.1M | 2.2M | 2.25M | 2.25M | 2.25M | 2.25M |
| Overall Length (C) | 6.3M | 7.3M | 5.8M | 6.65M | 6.8M | 7.6M | 6.6M | 6.9M | 6.9M |
| 20’/40’Container Loading Quantity | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/3sets | 1set/2sets | 1set/3sets | 1set/2sets | 1set/2sets |
